6.7L Diesel
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

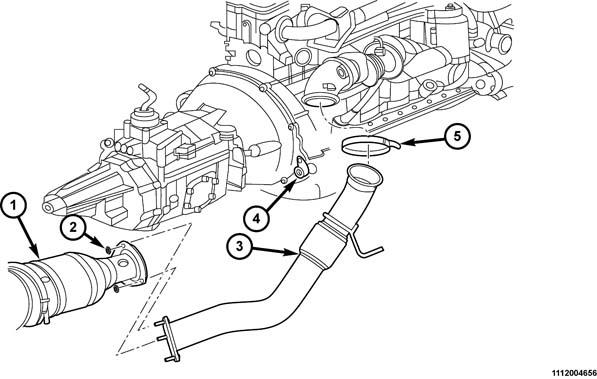

- Position the exhaust pipe (3) onto the turbocharger with the clamp (5) facing down as shown in illustration. Tighten clamp (5) finger tight.
- Using a new flange gasket, position exhaust pipe (3) on DOC/DPF flange and turbocharger flange.
- Install flange nuts (2). Tighten nuts (2) to 64 N.m (47 ft. lbs.).
- Install transmission mounted exhaust pipe support (4). Tighten bolts to 43 N.m (32 ft. lbs.).
- 4X4 Vehicles - Install transmission crossmember. Refer to CROSSMEMBER, TRANSMISSION, INSTALLATION .
- 4X4 Vehicles - Install transfer case skid plate. Refer to PLATE, SKID, TRANSFER CASE, INSTALLATION .
- Check the exhaust system for contact with the body panels. A minimum of 25 mm (1.0 in.) is required between the exhaust system components and body/frame parts. Make the necessary adjustments, if needed.
- Tighten the DOC to turbocharger band clamp to 17 N.m (150 in. lbs.). Using a rubber mallet, hit the DOC to turbocharger band clamp three times around the perimeter of the clamp and tighten the clamp to 17 N.m (150 in. lbs.).
- Lower the vehicle.
- Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
