Gas Engine

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

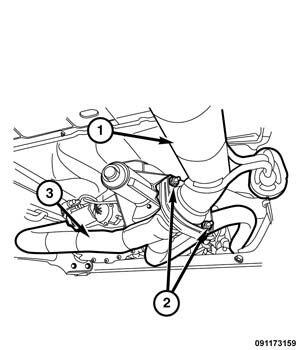

Fig 1: Exhaust System - 3.6L Engine - Typical

Courtesy of CHRYSLER GROUP, LLC

1 - EXHAUST PIPE

2 - FLANGE

3 - Y-PIPE

CAUTION:

Avoid application of rust prevention compounds or undercoating materials to exhaust system floor pan exhaust heat shields. Light overspray near the edges is permitted. Application of coating will result in excessive floor pan temperatures and objectionable fumes.

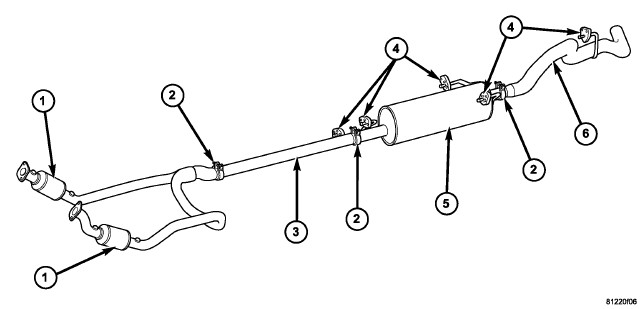

Fig 2: Exhaust System - 4.7L - Typical

Courtesy of CHRYSLER GROUP, LLC

1 - CATALYTIC CONVERTER

4 - INSULATOR

2 - CLAMP

5 - MUFFLER

3 - EXTENSION PIPE

6 - TAILPIPE/RESONATOR

The federal gasoline engine exhaust system consists of engine exhaust manifolds, exhaust pipes, catalytic converter(s), extension pipe (if needed), exhaust heat shields, muffler and exhaust tailpipe.

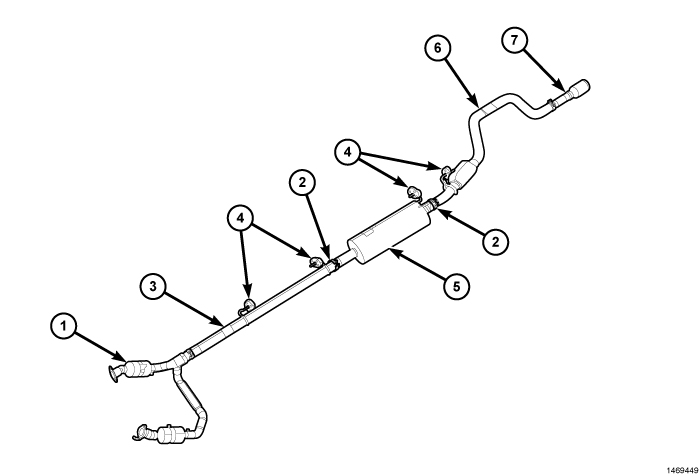

Fig 3: Exhaust System 5.7L Engine - Typical

Courtesy of CHRYSLER GROUP, LLC

1 - CATALYTIC CONVERTER

4 - INSULATOR

2 - CLAMP

5 - MUFFLER

3 - EXTENSION PIPE

6 - TAILPIPE/RESONATOR

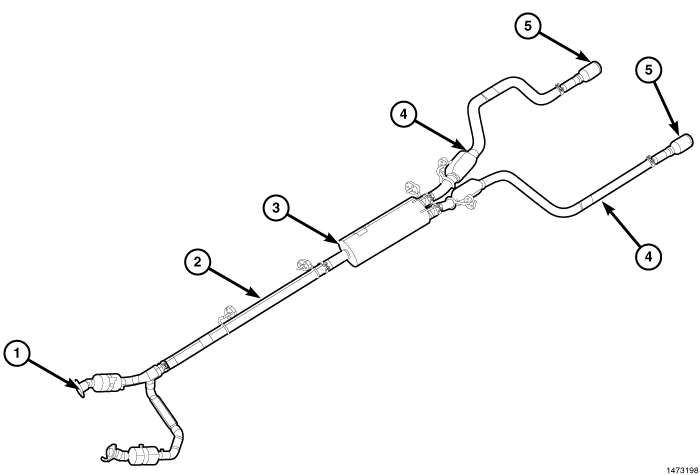

Fig 4: Exhaust System 5.7L Engine - Dual

Courtesy of CHRYSLER GROUP, LLC

1 - CATALYTIC CONVERTER

4 - INSULATOR

2 - CLAMP

5 - MUFFLER

3 - EXTENSION PIPE

6 - TAILPIPE/RESONATOR

The California emission vehicles exhaust system also contains the above components as well as mini catalytic converters added to the exhaust pipe.

The exhaust system must be properly aligned to prevent stress, leakage and body contact. Minimum clearance between any exhaust component and the body or frame is 25.4 mm (1.0 in.). If the system contacts any body panel, it may amplify objectionable noises from the engine or body.
