Section 357 (Instrument Cluster (Service Information) 2500 Hd & 3500 Hd): Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the cluster bezel from the instrument panel. Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL .

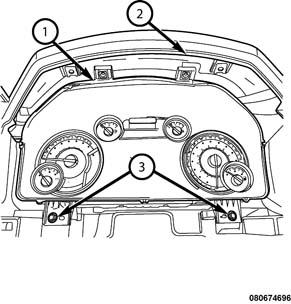

    Fig 1: Instrument Cluster, Instrument Panel & Screws
    GC0154533Courtesy of CHRYSLER GROUP, LLC
  3. Remove the two screws (3) that secure the instrument cluster (1) to the instrument panel (2).
    Fig 2: Disconnecting/Connecting Instrument Panel Wire Harness Connector
    GC0154362Courtesy of CHRYSLER GROUP, LLC
  4. Pull the instrument cluster rearward far enough to access and disconnect the instrument panel wire harness connector (2) from the connector receptacles on the back of the cluster (1) housing.
  5. Remove the instrument cluster from the instrument panel.
