6.7L - Diesel
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate both negative battery cables.
- Remove the secondary radiator. Refer to RADIATOR, ENGINE COOLING, REMOVAL .
- Remove both transmission line safety locks.

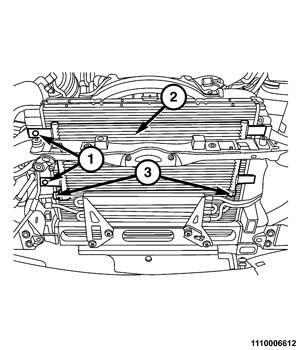

- Remove spring clips and disconnect the transmission oil cooler lines (3).
- Remove bolts (1) and the transmission cooler (2).
