A/C Condenser/Transmission Cooler Combination
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

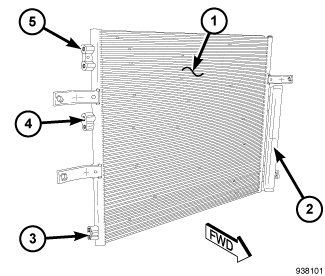

The automatic transmission cooler assembly is integrated in with the A/C condenser and behind the grille. The transmission cooler is a heat exchanger that allows heat in the transmission fluid to be transferred to the air passing over the cooler fins. The transmission oil cooler assembly is equipped with quick connect fitting for the transmission oil. The transmission oil cooler is serviced as an assembly with the A/C condenser.
To service the A/C condenser/Transmission cooler. Refer to CONDENSER, A/C, REMOVAL and CONDENSER, A/C, INSTALLATION .
