6.7L Diesel

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Cover, Bolts & Oil Dipstick

Courtesy of CHRYSLER GROUP, LLC

WARNING:

Hot, pressurized coolant can cause injury by scalding. Cooling system must be partially drained before removing the coolant temperature sensor.

Disconnect both negative battery cables.
Remove the engine oil dip stick (3).
Remove fasteners (1, 4) and the engine cover (2).
Partially drain the cooling system. Refer to STANDARD PROCEDURE .
Remove the EGR crossover tube. Refer to TUBE, EXHAUST GAS RECIRCULATION (EGR), CROSSOVER, REMOVAL .

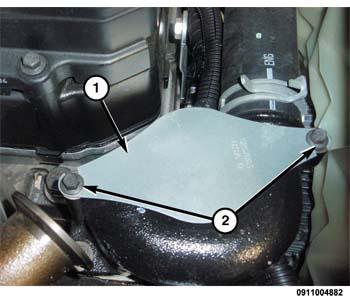

Fig 2: ECT Sensor Shield & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove bolts (1) and the heat shield (1).

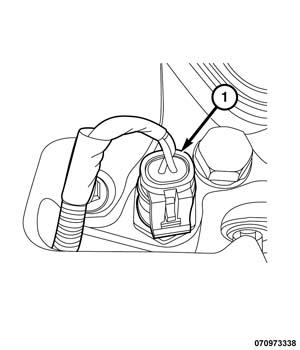

Fig 3: ECT Sensor Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the Engine Coolant Temperature (ECT) sensor wire harness connector (1).

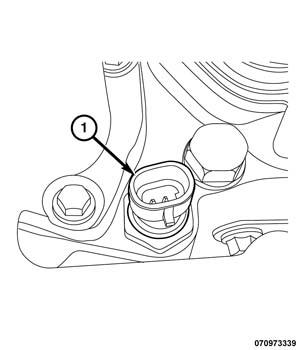

Fig 4: Identifying Engine Coolant Temperature Sensor (6.7L Diesel)
Courtesy of CHRYSLER GROUP, LLC
Remove the ECT sensor (1) from the cylinder head.
