Secondary Radiator

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

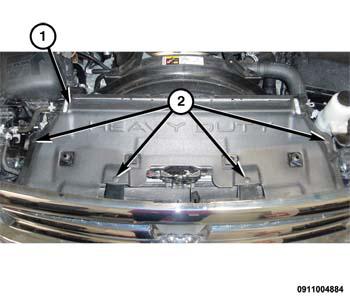

Fig 1: Upper Radiator Shroud & Fasteners

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate both negative battery cable.
Remove fasteners (2) and the upper radiator shroud (1).
WARNING:
Do not remove the cylinder block drain plugs or loosen the radiator draincock with the system hot and under pressure. Serious burns from coolant can occur.
Drain the cooling system. Refer to STANDARD PROCEDURE .
Remove the front grille. Refer to GRILLE, REMOVAL .
Remove bolts and the hood latch. Detach the hood latch cable from and retainers clips.

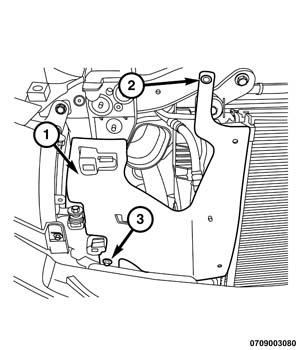

Fig 2: Right Side Outer Air Deflector & Push Pin Retainer
Courtesy of CHRYSLER GROUP, LLC
Remove push pin retainers (2) and the right side outer air deflector (1).

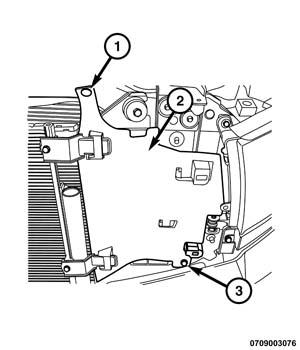

Fig 3: Left Side Outer Air Deflector & Push Pin Retainer
Courtesy of CHRYSLER GROUP, LLC
Remove push pin retainer (1) and the left side outer air deflector (2).

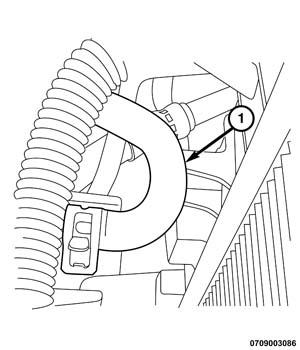

Fig 4: Coolant Bottle Hose
Courtesy of CHRYSLER GROUP, LLC
Remove the coolant bottle hose (1) from secondary radiator.

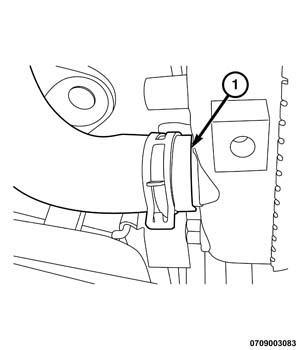

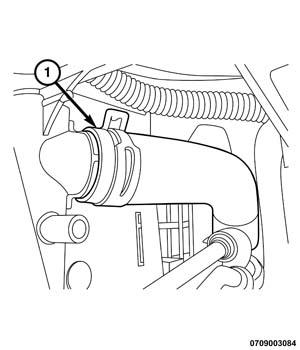

Fig 5: Upper Radiator Hose
Courtesy of CHRYSLER GROUP, LLC
Remove the upper radiator hose (1) from secondary radiator.

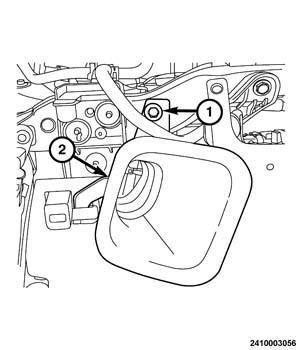

Fig 6: Cold Air Inlet Snorkel & Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove bolt (1) and the cold air inlet snorkel (2).
If required, disconnect the transmission cooler lines.

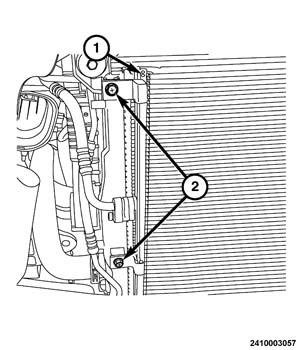

Fig 7: A/C Condenser & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove two bolts (2) and position aside the A/C condenser (1).

Fig 8: Intermediate Flexible Shroud & Retainers
Courtesy of CHRYSLER GROUP, LLC
Remove retainers (2) and the intermediate flexible shroud (1) at secondary radiator.

Fig 9: Lower Radiator Hose
Courtesy of CHRYSLER GROUP, LLC
Remove the lower radiator hose (1) at secondary radiator.

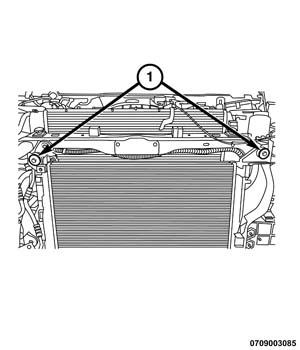

Fig 10: Secondary Radiator
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Left side secondary radiator mount is a tight fit.
Remove bolts (1) and the secondary radiator.
