6.7L Diesel
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Clean and inspect the threads in the cylinder block and heater element.
- Coat heater element threads with Mopar® Thread Sealer with Teflon.
- Screw engine block heater (1) into cylinder block and tighten to 75 N.m (55 ft. lbs.).

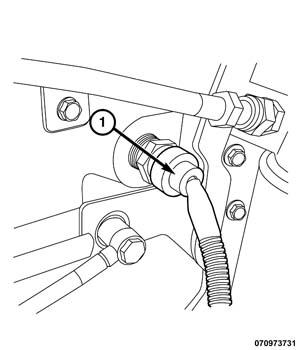

- Connect block heater cord and securely tighten retaining cap (1).
- Fill cooling system with recommended coolant. Refer to STANDARD PROCEDURE .
- Connect both negative battery cables.
- Start and warm the engine.
- Check block heater for leaks.
