Plate, Transmission Adapter: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Camshaft Seal

Courtesy of CHRYSLER GROUP, LLC

Replace the camshaft O-ring seal (1).

Fig 2: Transmission Adapter Plate & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the transmission adapter plate (1). Tighten bolts (2) in a criss-cross pattern to 77 N.m (57 ft. lbs.).
Install the starter motor. Refer to STARTER, INSTALLATION .

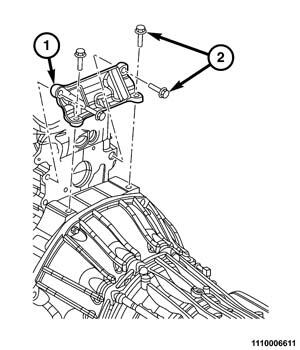

Fig 3: Top Engine Block Stiffener & Bolts
Courtesy of CHRYSLER GROUP, LLC
If equipped, Install the top engine block stiffener (1). Tighten bolts (2) to 89 N.m (66 ft. lbs.).

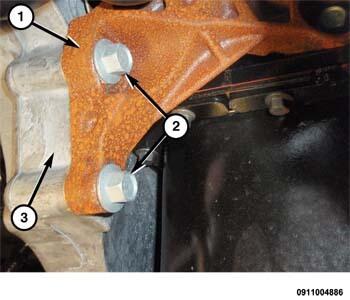

Fig 4: Right Engine Block Stiffener, Bolts & Engine Block
Courtesy of CHRYSLER GROUP, LLC
If equipped, Install the right engine block stiffener bolts (2) and tighten bolts to 89 N.m (66 ft. lbs.).

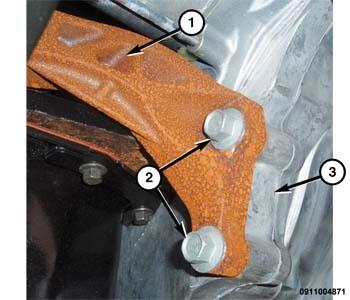

Fig 5: Left Engine Block Stiffener, Bolts & Engine Block
Courtesy of CHRYSLER GROUP, LLC
If equipped, Install the left engine block stiffener bolts (2) and tighten bolts to 89 N.m (66 ft. lbs.).
On manual transmission models, install the flywheel. Refer to FLYWHEEL, INSTALLATION .

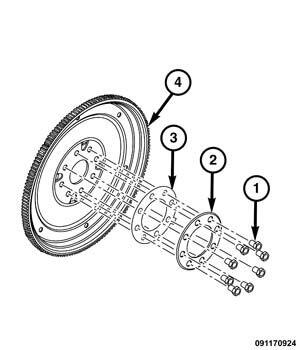

Fig 6: Bolts, Clamping Ring, Friction Shim & Flex Plate
Courtesy of CHRYSLER GROUP, LLC
Install the flex plate. Refer to FLEXPLATE, INSTALLATION, 6.7L .
