Rocker Arm, Valve: Installation: Installation
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

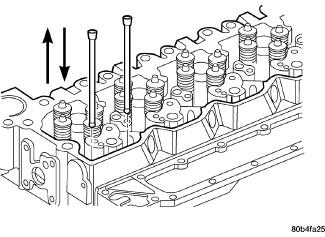

- If previously removed, install the push rods in their original location. Verify that they are seated in the tappets.
- Lubricate the valve tips and install the crossheads in their original locations.
- Lubricate the crossheads and push rod sockets and install the rocker arms and pedestals in their original locations. Tighten bolts to 36 N.m (27 ft. lbs.).

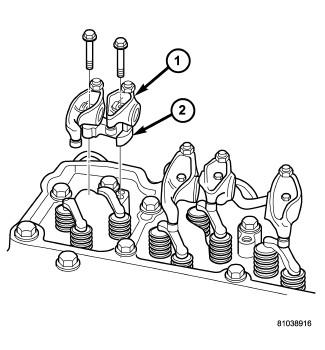

1 - ROCKER ARM 2 - PEDESTAL - Verify valve lash adjustment. Refer to VALVE LASH ADJUSTMENT AND VERIFICATION .
- Install cylinder head cover. Refer to COVER(S), CYLINDER HEAD, INSTALLATION, 6.7L .
- Connect both negative battery negative cables.
