Manifold, Intake, CNG : Installation: Installation-CNG

WARNING: This page is about a different car, the 2013 RAM 2500 HD and 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Intake Manifold & PCV Seals
GC0088126Courtesy of CHRYSLER GROUP, LLC
NOTE:

If reinstalling the original manifold apply Mopar® Lock & Seal Adhesive to the intake manifold bolts. Not required when installing a new manifold.

  1. Apply Mopar® Lock & Seal Adhesive to the intake manifold bolts.
  2. Install the intake manifold seals (3) and positive crankcase ventilation (PCV) seals (1).
    NOTE:

    Standard gasoline engine shown in illustration. CNG engine similar.

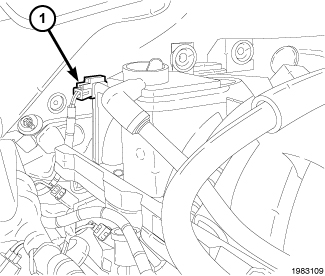

    Fig 2: MAP Sensor
    GC0088125Courtesy of CHRYSLER GROUP, LLC
  3. Connect both the manifold air pressure (MAP) sensor (1) and the short runner valve (SRV) electrical connectors located at the rear of the intake manifold as you position the intake manifold in place.

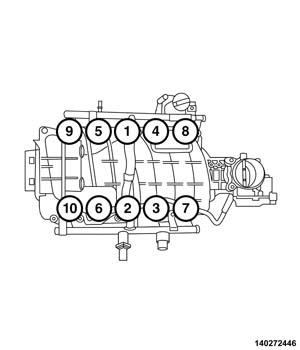

    Fig 3: Intake Manifold Retaining Bolt Removal & Tightening Sequence
    GC0155483Courtesy of CHRYSLER GROUP, LLC
  4. Using the sequence shown in illustration, tighten the intake manifold bolts to 12 N.m (9 ft. lbs.).
  5. Position the main engine electrical harness at the rear of the intake manifold and install the support strap.
    NOTE:

    The factory fuel injection electrical harness is numerically tagged (INJ 1, INJ 2, etc.) for injector position identification. If the harness was not tagged, use the noted the electrical connector's location during removal.

    Fig 4: Fuel Supply Line Quick Connect Fitting At Fuel Rail
    GC0088122Courtesy of CHRYSLER GROUP, LLC
  6. Position the fuel injector electrical harness and connect the electrical connectors to all fuel injectors.
  7. Connect the gasoline fuel supply line quick connect fitting at the fuel rail (1).
    Fig 5: CNG Fuel Rail Pressure Sensor, Fuel Rail & Fuel Supply Line
    GC0155467Courtesy of CHRYSLER GROUP, LLC
  8. Connect the CNG fuel supply line (4) at the fuel rail (2).
  9. Connect the CNG fuel rail pressure sensor (1).
  10. Install the throttle body bracket and securely tighten the retaining bolt.
  11. Install the generator. Refer to INSTALLATIONGENERATOR, INSTALLATION .

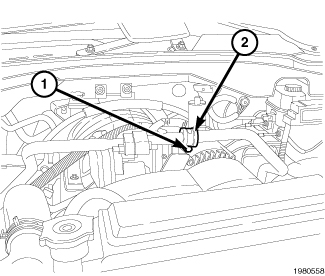

    Fig 6: A/C Line P-Clip & Retaining Bolt
    GC0088123Courtesy of CHRYSLER GROUP, LLC
  12. Position the A/C lines, install the A/C line P-Clip (2) and tighten P-Clip retaining bolt (1) to 4 N.m (35 in. lbs.).
    Fig 7: Clean Air Tube, IAT Sensor Electrical Connector & Air Cleaner Housing
    GC0155436Courtesy of CHRYSLER GROUP, LLC
  13. Install the air cleaner assembly (4)
  14. Connect the clean air tube (2) to the air cleaner assembly (4) and the throttle body.
  15. Connect the makeup air hose.
  16. Connect the IAT sensor electrical connector (3).
    Fig 8: Battery
    GC0087848Courtesy of CHRYSLER GROUP, LLC
  17. Connect the battery negative cable (1).
    NOTE:

    If the engine stalls. DO NOT  turn the key to the off position. Restart the engine and allow the CNG to pressurize the fuel rail.

  18. Start the vehicle and allow the engine to run until the fuel system is switched from the liquid to CNG.
