Air Cleaner: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 2500 HD and 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

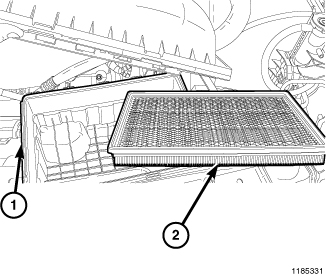

Fig 1: Air Cleaner Body & Air Filter Element

Courtesy of CHRYSLER GROUP, LLC

Clean any dirt or foreign matter from the inside of the air cleaner housing (1).
Install the air filter element (2) into air cleaner housing. Make sure the element is properly seated in the housing.

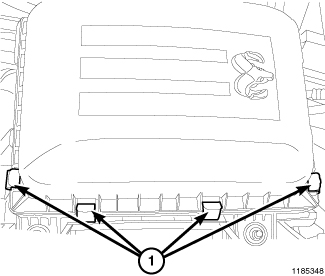

Fig 2: Air Cleaner Body Cover Retaining Clamps
Courtesy of CHRYSLER GROUP, LLC
Position the air cleaner housing cover to the air cleaner housing and engage the cover locating tabs.
Fully install the air cleaner housing cover to the air cleaner housing and engage the four retaining clamps (1).
