TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Operate the Driver Window switch up and down several times.
4. Wait 30 seconds.
5. With the scan tool, read the active DTCs.
  Does the scan tool display B1857-11-DRIVER WINDOW POSITION SENSOR POWER SUPPLY - CIRCUIT SHORT TO GROUND?

  Yes
  - Go To 2.
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST for 1500, 2500 & 3500, or BODY VERIFICATION TEST for 3500 CAB & CHASSIS, 4500 & 5500 .
WINDOW MOTOR SHORTED

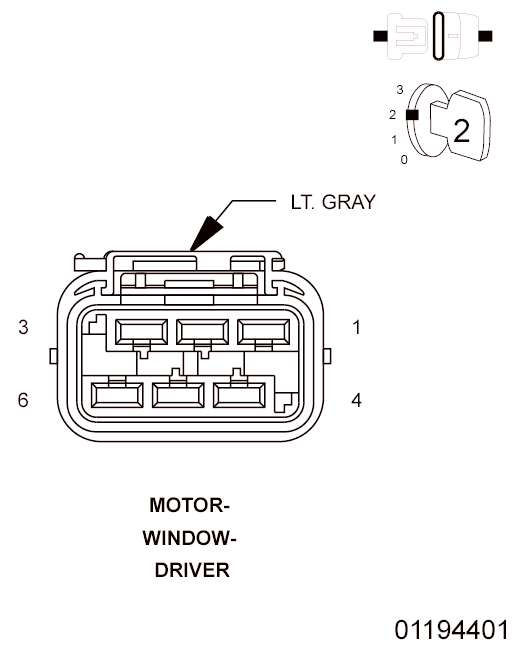

Fig 1: Checking Window Motor For Short
Courtesy of CHRYSLER LLC
1. With the scan tool, erase DTCs.
2. Turn the ignition off.
3. Disconnect the Driver Window Motor harness connector.
4. Turn the ignition on.
5. Operate the Driver Window switch up and down several times.
6. With the scan tool, read the active DTCs.
  Does the scan tool display B1857-11-DRIVER WINDOW POSITION SENSOR POWER SUPPLY - CIRCUIT SHORT TO GROUND?

  Yes
  - Go To 3.
  No
  - Replace the Window Motor (regulator) in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST for 1500, 2500 & 3500, or BODY VERIFICATION TEST for 3500 CAB & CHASSIS, 4500 & 5500 .
(Q305) DRIVER WINDOW HALL SENSOR SUPPLY CIRCUIT SHORTED TO GROUND

Fig 2: Checking Driver Window Hall Sensor Supply Circuit For Short
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Driver Door Module C4 harness connector.
3. Measure the resistance between ground and the (Q305) Driver Window Hall Sensor Supply circuit.
  Is the resistance below 10,000 Ohms?

  Yes
  - Repair the short to ground in the (Q305) Driver Window Hall Sensor Supply circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST for 1500, 2500 & 3500, or BODY VERIFICATION TEST for 3500 CAB & CHASSIS, 4500 & 5500 .
  No
  - Replace the Driver Door Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST for 1500, 2500 & 3500, or BODY VERIFICATION TEST for 3500 CAB & CHASSIS, 4500 & 5500 .
