Line, A/C Liquid: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Be certain to adjust the refrigerant oil level when servicing the A/C refrigerant system. Failure to properly adjust the refrigerant oil level will prevent the A/C system from operating as designed and can cause serious A/C compressor damage.

NOTE:

When replacing multiple A/C system components, see the Refrigerant Oil Capacities chart to determine how much oil should be added to the refrigerant system. Refer to OIL, REFRIGERANT, STANDARD PROCEDURE .

NOTE:

Replacement of the refrigerant line O-ring seals and gaskets is required anytime a refrigerant line is disconnected. Failure to replace the rubber O-ring seals and metal gaskets could result in a refrigerant system leak.

Fig 1: Remove/Install Internal Heat Exchanger
GC0154487Courtesy of CHRYSLER GROUP, LLC
  1. Position the line assembly (5) into the engine compartment and install the mounting fasteners (3), (4), and (5).
  2. Remove the tape or plugs from the opened refrigerant line fittings and expansion valve ports.
  3. Lubricate new O-ring seals with clean refrigerant oil and install them onto the refrigerant line fittings. Use only the specified O-ring seals as they are made of a special material for the R-134a system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

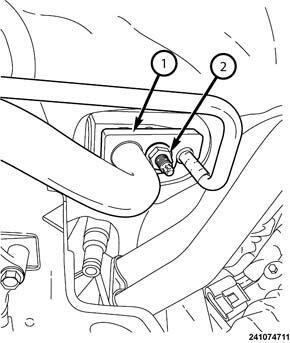

    Fig 2: Remove/Install A/C Liquid Line & Suction Line
    GC0154408Courtesy of CHRYSLER GROUP, LLC
  4. Connect the A/C liquid line and A/C suction line to the A/C expansion valve (1).
  5. Install the nut (2) that secures the A/C liquid and suction lines to the A/C expansion valve. Tighten the nut to 23 N.m (17 ft. lbs.).

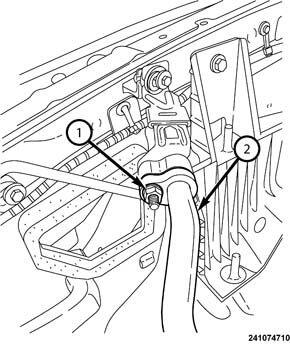

    Fig 3: Remove/Install A/C Discharge Line
    GC0154597Courtesy of CHRYSLER GROUP, LLC
  6. Install the A/C discharge to the Internal Heat Exchanger using a new, lubricated seal.
  7. Install the nut (1) that secures the A/C liquid discharge line (2) to the Internal Heat Exchanger. Tighten the nut to 23 N.m (17 ft. lbs.).
    Fig 4: Remove/Install A/C Liquid Line
    GC0154462Courtesy of CHRYSLER GROUP, LLC
  8. Lubricate a new seal with clean refrigerant oil and install it and a new gasket onto the liquid line fitting. Use only the specified O-ring seal as it is made of a special material for the R-134a system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.
  9. Connect the A/C liquid line (1) to the condenser jumper line tapping block (3).
  10. Install the nut (2) that secures the A/C liquid line to the condenser jumper line tapping block. Tighten the nut to 23 N.m (17 ft. lbs.).
  11. If equipped with the 6.7L diesel engine, install the battery tray and battery to the right side of the engine compartment.
  12. If equipped with a gasoline engine, install the air filter housing mounting bracket and air filter housing to the right side of the engine compartment.
  13. Connect the negative battery cable.
  14. Evacuate the refrigerant system. Refer to PLUMBING, STANDARD PROCEDURE .
  15. Adjust the refrigerant oil level. Refer to OIL, REFRIGERANT, STANDARD PROCEDURE .
  16. Charge the refrigerant system. Refer to PLUMBING, STANDARD PROCEDURE .
