Motor, Blower: Removal: Removal
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The blower motor is located on the passenger side of the vehicle under the instrument panel. The blower motor can be removed from the vehicle without having to remove the HVAC housing assembly.
- Disconnect and isolate the negative battery cable.

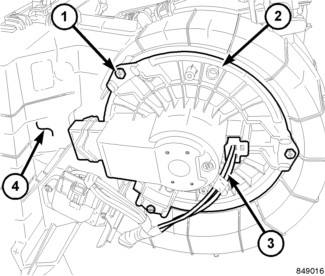

- Disconnect the HVAC wire harness lead (3) from the blower motor (2).
- Remove the three screws (1) that secure the blower motor to the bottom of the HVAC housing (4) and remove the blower motor.
