Manual Single Zone
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
The A/C-heater control for the manual temperature control (MTC) single zone heating-A/C system allows one temperature setting for the entire vehicle. All controls are identified by ISO graphic symbols.

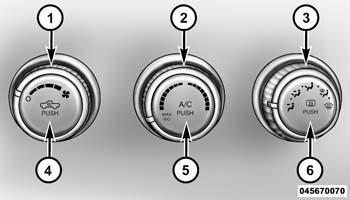

The A/C-heater control is located in the instrument panel and contains:
- a rotary control for fan speed selection and turning the heating-A/C system off (1).
- a rotary control for temperature control of the discharged air (2).
- a rotary mode control of the discharged air (3).
- a push button control for recirculation (4) an LED in the button will illuminate when you are in recirculation mode.
- a push button A/C on/off control (5). An LED in the button illuminates when the A/C system is in operation.
- a push button rear window/side mirror defogger on/off control (6) when equipped with optional rear heated window and/or heated mirrors. An LED in the button illuminates when the rear window/mirror defogger (EBL) system is in operation.
The A/C-heater control for the MTC system is diagnosed using a scan tool. Refer to DIAGNOSIS AND TESTING .
The A/C-heater control cannot be adjusted or repaired and must be replaced if inoperative or damaged.
