Shaft, Axle: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

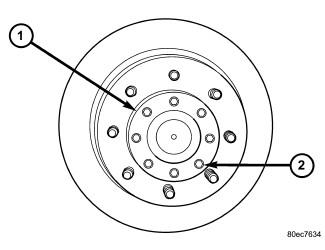

Fig 1: Axle Shaft Flange & Bolts
GC0107842Courtesy of CHRYSLER GROUP, LLC
  1. Remove axle shaft flange (1) bolts (2).
  2. Slide axle shaft out of the axle tube.
  3. Remove axle shaft gasket.
