Section 345 (Rear Axle - 10 1/2 Aa - 2500 Hd & 3500 Hd): Installation: Installation
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

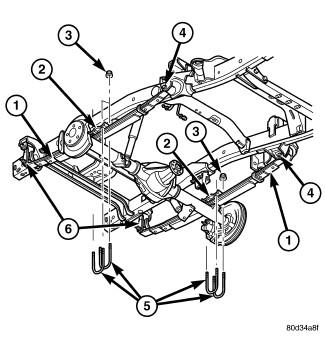

- Raise axle with lift and align to the leaf spring centering bolts.
- Install axle U-bolts (5) and tighten to 149 N.m (110 ft. lbs.).
- Install shock absorbers to axle and tighten to specification.
- Install all brake components.
- Install axle vent hose.
- Install propeller shaft with reference marks aligned and tighten to specification.
- Fill differential to specifications.
