Seal, Axle Drive Shaft: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

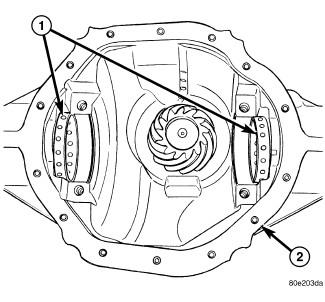

Fig 1: Differential Bearing Adjusters
GC0107643Courtesy of CHRYSLER GROUP, LLC
  1. Remove hub bearings and axle shafts.
  2. Remove differential from differential housing (2).
  3. Remove differential bearing adjusters (1).

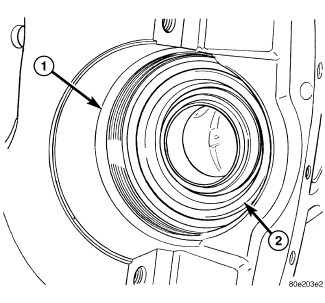

    Fig 2: Axle Shaft Seal
    GC0107644Courtesy of CHRYSLER GROUP, LLC
  4. Remove axle seals (2) located behind adjusters with Receiver (special tool #8498, Receiver, Axle Shaft Seal) and Extractor (special tool #6310, Remover, Bearing/Seal).

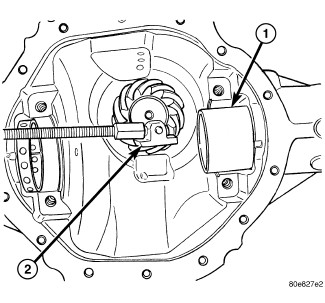

    Fig 3: Seal Receiver
    GC0107645Courtesy of CHRYSLER GROUP, LLC
  5. Install Receiver (special tool #8498, Receiver, Axle Shaft Seal) (1) into the adjuster bore.
  6. Install Extractor Rod (special tool #6310, Remover, Bearing/Seal) with Extractor Foot (special tool #6310-9, Head) (2) through the receiver and axle seal.

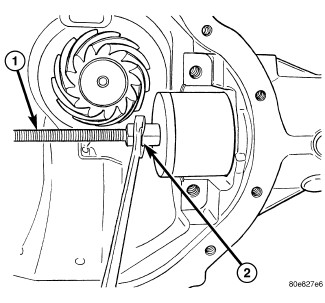

    Fig 4: Pulling Seal Into Receiver
    GC0107646Courtesy of CHRYSLER GROUP, LLC
  7. Install Extractor Plate (special tool #6310-2, Disc) and Nut (special tool #6310-7, Nut) (2) on the extractor rod (1).
  8. Tighten nut (2) on extractor rod (1) to pull seal into the receiver.
