Shaft, Drive, Front Light Duty: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Propeller Shaft & Pinion Flange Reference Mark
GC0083213Courtesy of CHRYSLER GROUP, LLC
  1. With vehicle in neutral, position vehicle on hoist.
  2. Remove exhaust crossover pipe.
  3. Mark a line across the axle companion flange (1), propeller shaft (2), flange yoke (3) and transfer case for installation reference.

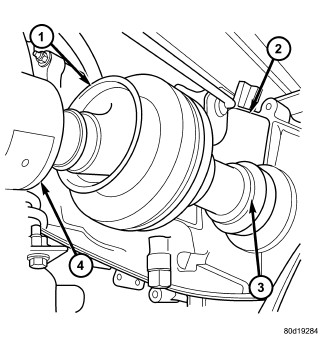

    Fig 2: C/V Joint Dust Boot Clamp
    GC0083214Courtesy of CHRYSLER GROUP, LLC
  4. Remove axle/transfer case companion flange bolts. Remove dust boot clamp (3) from the C/V joint (1) end of the shaft if equipped.
  5. Remove propeller shaft.
