Shaft, Drive, Front Light Duty: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

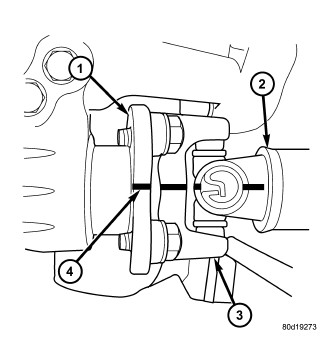

Fig 1: Propeller Shaft & Pinion Flange Reference Mark
GC0083213Courtesy of CHRYSLER GROUP, LLC
  1. Install propeller shaft with all reference marks (4) aligned.
  2. Install with dust boot clamp at transfer case end.
    NOTE:

    Drive shaft bolts must be replaced or cleaned and Mopar® Lock and Seal Adhesive or equivalent applied.

  3. Install axle companion flange bolts and tighten to 115 N.m (85 ft. lbs.).
  4. Install skid plate, if equipped.
