Section 342 (Body - Interior & Exterior - 2500 Hd & 3500 Hd): Winch: Bracket: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Winch Assembly

Courtesy of CHRYSLER GROUP, LLC

Remove the winch (2). Refer to WINCH, REMOVAL .

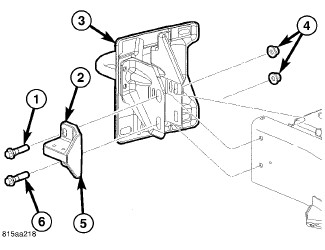

Fig 2: Frame Bracket
Courtesy of CHRYSLER GROUP, LLC
Remove the upper bolts (1) and remove the frame brackets (2).

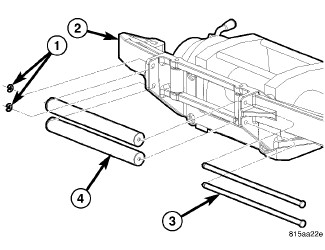

Fig 3: Roller, Shaft & Clips
Courtesy of CHRYSLER GROUP, LLC
Separate one of the roller shaft clips (1), remove the shaft (3) and the roller (4).

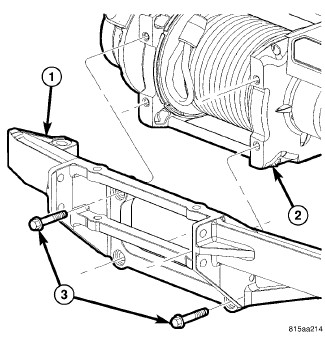

Fig 4: Removing/Installing Support Bracket
Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (3) and separate the support bracket (1) from the winch assembly (2).
