Seat, Mega Cab Rear: Description: Description
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| MEGA CAB | FIGURE |
|---|---|
| REAR 60% SEAT - MEGA CAB | Refer to Fig 1. |
| REAR 40% SEAT - MEGA CAB | Refer to Fig 2. |
| REAR SEAT MOUNTING BRACKETS - MEGA CAB | Refer to Fig 3. |

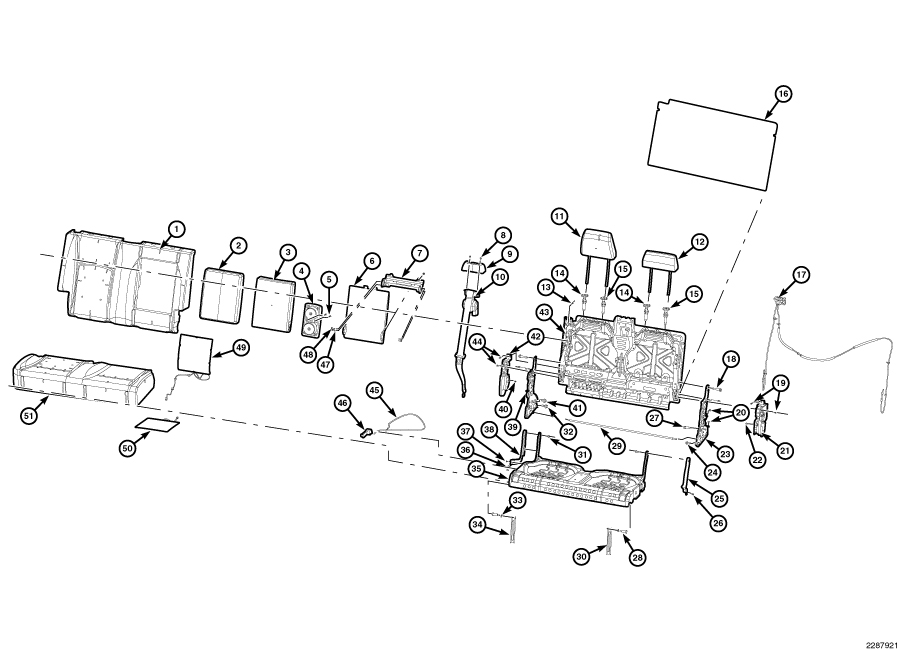

| 1 - SEAT BACK CUSHION/COVER ASSEMBLY | 27 - REAR MOUNTING BRACKET BOLT 28 N.m (21 ft. lbs.) |
| 2 - ARMREST COVER | 28 - PIVOT LEG TO CUSHION BOLTS (2) 28 N.m (21 ft. lbs.) |
| 3 - ARMREST FOAM | 29 - CONNECTING ROD |
| 4 - CUP HOLDER | 30 - FRONT PIVOT MOUNTING LEG BRACKET |
| 5 - CUP HOLDER SCREWS (2) | 31 - STOW PIVOT BOLTS (2) 28 N.m (21 ft. lbs.) |
| 6 - ARMREST BACK PANEL | 32 - REAR MOUNTING BRACKET BOLTS (2) 28 N.m (21 ft. lbs.) |
| 7 - ARMREST PIVOT ASSEMBLY | 33 - PIVOT LEG TO CUSHION WASHERS (2) |
| 8 - RETRACTOR COVER SCREWS (2) | 34 - FRONT PIVOT MOUNTING LEG BRACKET |
| 9 - RETRACTOR COVER | 35 - SEAT CUSHION FRAME ASSEMBLY |
| 10 - RETRACTOR | 36 - RECLINER HANDLE BRACKET SCREWS (2) |
| 11 - HEADREST | 37 - SIDE COVER SCREW |
| 12 - CENTER HEADREST | 38 - SEAT CUSHION FRAME SIDE COVER |
| 13 - SCREWS (2) | 39 - RECLINER - OUTBOARD |
| 14 - HEADREST SLEEVE - SLAVE | 40 - RETRACTOR BEZEL SCREW |
| 15 - HEADREST SLEEVE - MASTER | 41 - REAR MOUNTING BRACKET BOLT 28 N.m (21 ft. lbs.) |
| 16 - SEAT BACK PANEL | 42 - RECLINER COVER |
| 17 - FOLD-TABLE CABLE ASSEMBLY | 43 - SEAT BACK FRAME ASSEMBLY |
| 18 - SEAT BACK TO RECLINER BOLTS (4) 48 N.m (35 ft. lbs.) | 44 - RECLINER COVER SCREWS |
| 19 - RECLINER COVER SCREWS | 45 - RECLINER CABLE ASSEMBLY |
| 20 - SCREWS | 46 - RECLINER HANDLE |
| 21 - RECLINER COVER | 47 - ARMREST FRAME PIVOT BOLTS (2) 8 N.m (71 in. lbs.) |
| 22 - SCREW | 48 - ARMREST PIVOT TO FRAME BOLTS (2) 8 N.m (71 in. lbs.) |
| 23 - RECLINER - INBOARD | 49 - SEAT BACK HEAT MAT |
| 24 - REAR MOUNTING BRACKET BOLTS (2) 48 N.m (35 ft. lbs.) | 50 - SEAT CUSHION HEAT MAT |
| 25 - SEAT CUSHION FRAME SIDE COVER | 51 - SEAT CUSHION/COVER ASSEMBLY |
| 26 - SIDE COVER SCREW |

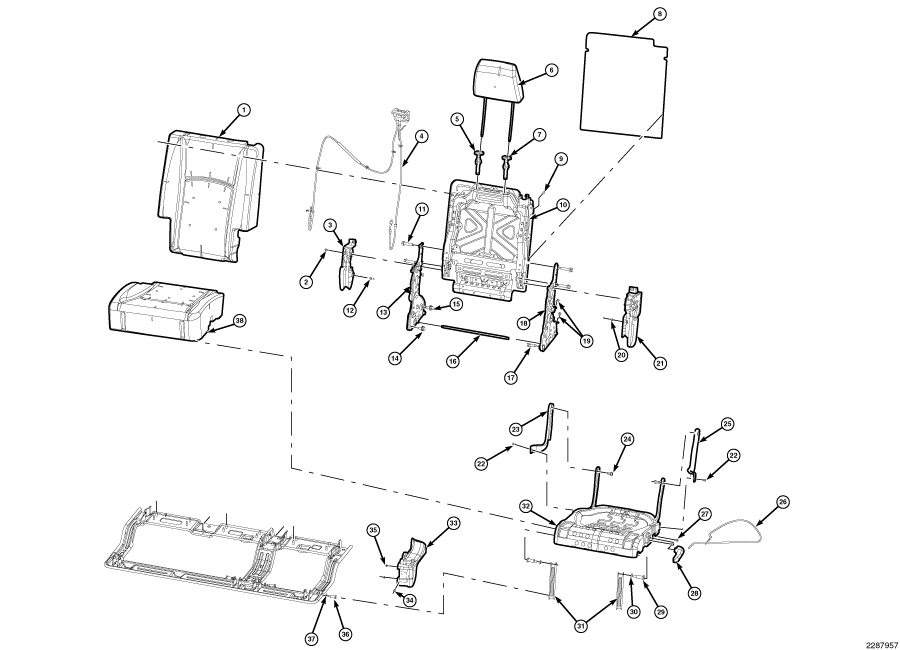

| 1 - SEAT BACK CUSHION/COVER ASSEMBLY | 20 - SCREW |
| 2 - RECLINER COVER SCREWS | 21 - RECLINER COVER |
| 3 - RECLINER COVER | 22 - SIDE COVER SCREW |
| 4 - FOLD-TABLE CABLE ASSEMBLY | 23 - SEAT CUSHION FRAME SIDE COVER |
| 5 - HEADREST SLEEVE - SLAVE | 24 - STOW PIVOT BOLTS (2) 28 N.m (21 ft. lbs.) |
| 6 - HEADREST | 25 - SEAT CUSHION FRAME SIDE COVER |
| 7 - HEADREST SLEEVE - MASTER | 26 - RECLINER CABLE ASSEMBLY |
| 8 - SEAT BACK PANEL | 27 - RECLINER HANDLE BRACKET SCREWS (2) |
| 9 - SCREWS (2) | 28 - RECLINER HANDLE |
| 10 - SEAT BACK FRAME ASSEMBLY | 29 - PIVOT LEG TO CUSHION BOLTS (2) 28 N.m (21 ft. lbs.) |
| 11 - SEAT BACK TO RECLINER BOLTS (4) 48 N.m (35 ft. lbs.) | 30 - FRONT PIVOT MOUNTING LEG BRACKET |
| 12 - RETRACTOR BEZEL SCREW | 31 - SEAT CUSHION FRAME ASSEMBLY |
| 13 - RECLINER - INBOARD | 32 - RISER COVER ASSEMBLY |
| 14 - REAR MOUNTING BRACKET BOLTS (2) 28 N.m (21 ft. lbs.) | 33 - RISER COVER SCREW |
| 15 - REAR MOUNTING BRACKET BOLTS (2) 48 N.m (35 ft. lbs.) | 34 - RISER COVER SCREWS (2) |
| 16 - CONNECTING ROD | 35 - PIVOT LEG TO BRACKET BOLTS (2) 28 N.m (21 ft. lbs.) |
| 17 - REAR MOUNTING BRACKET BOLT 28 N.m (21 ft. lbs.) | 36 - PIVOT LEG TO BRACKET WASHERS (2) |
| 18 - RECLINER - OUTBOARD | 37 - SEAT CUSHION/COVER ASSEMBLY |
| 19 - SCREWS |

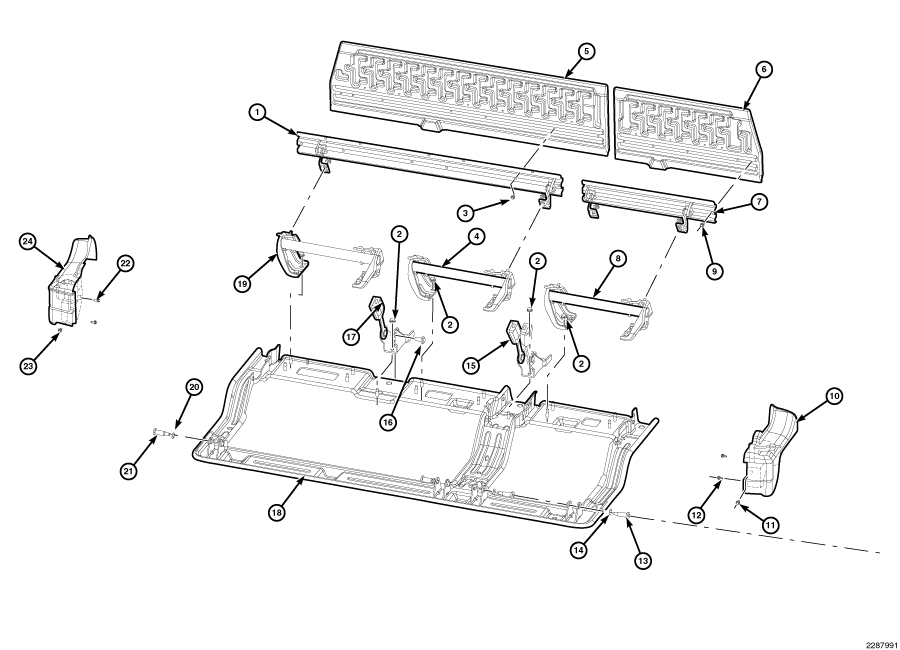

| 1 - FLIPPER PANEL BRACKET ASSEMBLY - 60 | 13 - PIVOT LEG TO BRACKET BOLTS - 40 (2) 28 N.m (21 ft. lbs.) |
| 2 - MOUNTING NUTS (16) 28 N.m (21 ft. lbs.) | 14 - PIVOT LEG TO BRACKET WASHERS - 40 (2) |
| 3 - FLIPPER PANEL SCREWS - 60 (11) | 15 - SEAT BUCKLE ASSEMBLY INBOARD - 40 |
| 4 - CENTER ISOFIX TUBE ASSEMBLY | 16 - BELT BUCKLE BOLT 47 N.m (35 ft. lbs.) |
| 5 - FLIPPER PANEL - 60 | 17 - SEAT BUCKLE ASSEMBLY CENTER |
| 6 - FLIPPER PANEL - 40 | 18 - FLOOR MOUNTING BRACKET ASSEMBLY |
| 7 - FLIPPER PANEL BRACKET ASSEMBLY - 40 | 19 - OUTBOARD ISOFIX TUBE ASSEMBLY - 40 |
| 8 - OUTBOARD ISOFIX TUBE ASSEMBLY - 40 | 20 - PIVOT LEG TO BRACKET WASHERS - 60 (2) |
| 9 - FLIPPER PANEL SCREWS - 40 (9) | 21 - PIVOT LEG TO BRACKET BOLTS - 60 (2) 28 N.m (21 ft. lbs.) |
| 10 - RISER COVER ASSEMBLY | 22 - RISER COVER SCREWS (2) |
| 11 - RISER COVER SCREW | 23 - RISER COVER SCREW |
| 12 - RISER COVER SCREWS (2) | 24 - RISER COVER ASSEMBLY |
