Seat Back, Front: Assembly: Assembly

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

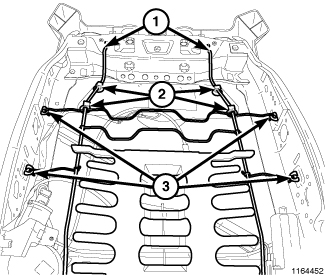

Fig 1: Lumbar Mat Side Wires

Courtesy of CHRYSLER GROUP, LLC

NOTE:

While servicing seat assemblies, Refer to DESCRIPTION .

Connect the upper support wires (1) to the seat back frame.
Secure the lumbar mat side wires (3).
Secure the vented seat motor clips (2) to the lumbar support, if equipped.

Fig 2: Lower Lumbar Mat
Courtesy of CHRYSLER GROUP, LLC
Secure the lower lumbar mat (1) to the clips (2).

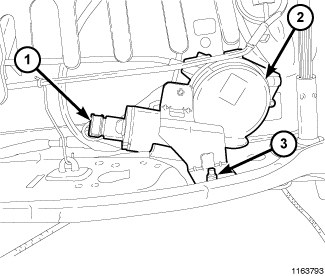

Fig 3: Lumbar Motor
Courtesy of CHRYSLER GROUP, LLC
If equipped, position the lumbar motor (2) onto the seat back frame and install the bolt (3).
Tighten the bolt (3) to 10 N.m (89 in. lbs.).
Connect the electrical connector (1).

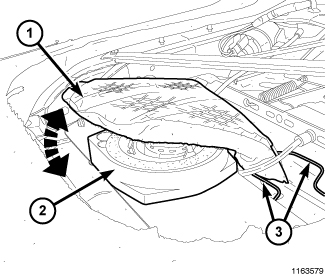

Fig 4: Vented Seat Bag
Courtesy of CHRYSLER GROUP, LLC
Position the vented seat bag (1) through the seat back support spring (3).
Position the vented seat bag (1) onto the vent motor (2) and seat the clips fully.

Fig 5: J-Straps
Courtesy of CHRYSLER GROUP, LLC
Seat the foam and cover assembly over the seat back frame fully and secure the J-straps (1 and 2).

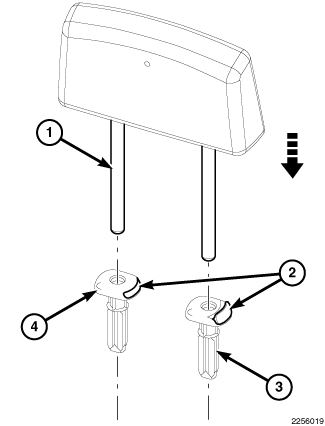

Fig 6: Head Restraint Sleeves With Slave Sleeve
Courtesy of CHRYSLER GROUP, LLC
Install the new head restraint sleeves with slave sleeve (4) in the right position and master sleeve (3) in the left position.
Press the lock buttons (2) on the sleeves and insert the head restraint tubes (1) into the head restraint guide sleeves, ensuring proper forward facing orientation of the head restraint.

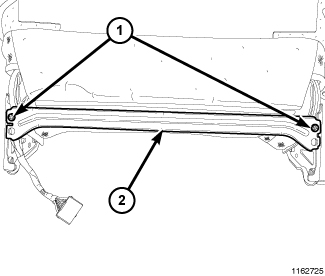

Fig 7: Brace
Courtesy of CHRYSLER GROUP, LLC
Install the brace (2) and install the screws (1).

Fig 8: Side Shield
Courtesy of CHRYSLER GROUP, LLC
Position the inner shields (1) back and seat the locator pin (2) fully.
Install the seat back. Refer to SEAT BACK, FRONT, INSTALLATION .
