Shield, Splash, Front Wheelhouse: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

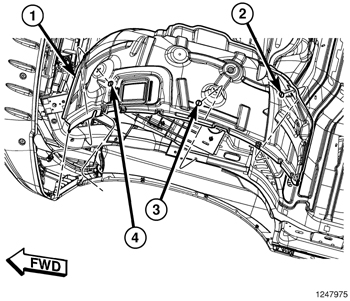

Fig 1: Inner Shield Push Pins
GC0088996Courtesy of CHRYSLER GROUP, LLC
  1. Release the ABS harness push pin from the inner shield.
  2. Remove the push pins (2, 3, 4).

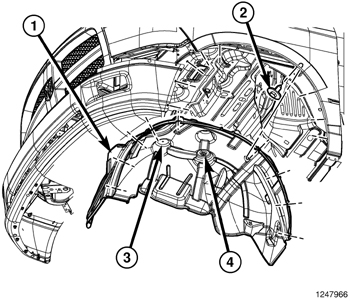

    Fig 2: Inner Shield Screws
    GC0088997Courtesy of CHRYSLER GROUP, LLC
  3. Remove the inner screws (3 and 4).
  4. Remove the screws securing the shield to the fascia and the outer fender flange (2).
  5. Release the outboard edge of the shield (1) from the fender flange and remove the shield (1).
