Grille, Active Shutter: Disassembly: Disassembly

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

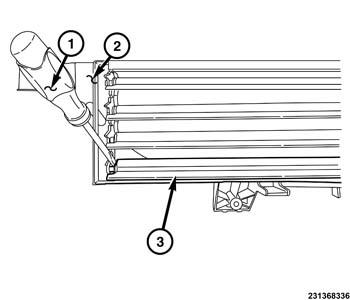

Fig 1: Flat Bladed Tool, Active Grill Shutter Frame And Vane

Courtesy of CHRYSLER GROUP, LLC

NOTE:

When replacing the active grill shutter assembly or active grill shutter actuator with a service part it will be necessary to perform a counter reset with a scan tool. Follow the scan tool prompts as located under PCM/Misc. Functions/Active Grill Shutter Replace.

Place an appropriate sized flat bladed tool (1), or equivalent between the active grill shutter frame (2) and the vane (3) outer end.
Gently pry until the vane (3) tab is released from the frame (2).

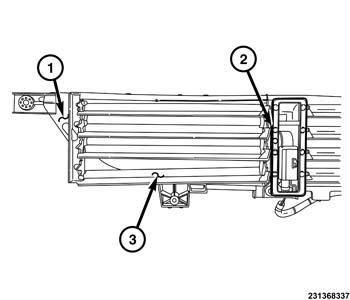

Fig 2: Frame, Linkage And Vane
Courtesy of CHRYSLER GROUP, LLC
Upper and lower vanes will need to be unclipped from the linkage (2), center vanes sit in the slot guides.
Move vane outward (3) to release it from the frame (1).
.

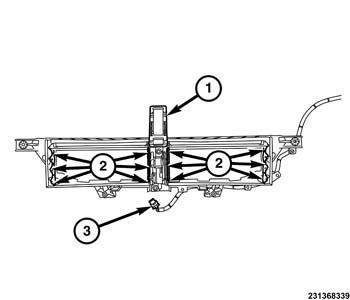

Fig 3: Lower Vanes And Linkage
Courtesy of CHRYSLER GROUP, LLC
Remove the six lower vanes (2) from the active grill shutter housing.
Rotate the linkage (1) upward.

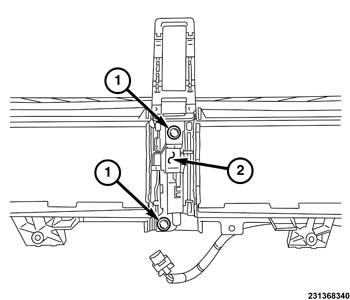

Fig 4: Fasteners And Active Grill Shutter Actuator

Courtesy of CHRYSLER GROUP, LLC

Remove the two fasteners (1).
Remove the active grill shutter actuator (2) from the active grill shutter frame.
