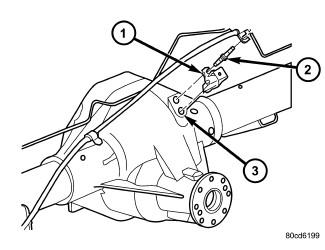

Fig 1: Rear Wheel Speed Sensor

Courtesy of CHRYSLER GROUP, LLC

1 - WHEEL SPEED SENSOR

2 - MOUNTING STUD

3 - AXLE HOUSING

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the brake line mounting nut and remove the brake line from the sensor stud.
Remove the mounting stud (2) from the sensor (1) and shield.
Remove the sensor (1) and shield from the differential housing (3).
Disconnect the sensor wire harness and remove the sensor (1).
