Pedal, Parking Brake: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the parking brake.
  2. Raise the vehicle.
  3. Loosen the cable tensioner nut at the equalizer to create slack in the front cable.
  4. Lower the vehicle.
  5. Remove the knee bolster. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .

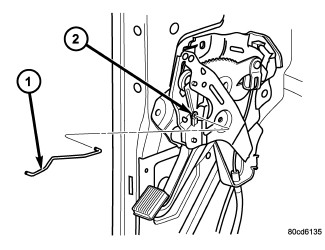

    Fig 1: Parking Brake Pedal & Release Rod
    GC0083399Courtesy of CHRYSLER GROUP, LLC
    1 - RELEASE ROD
    2 - PEDAL ASSEMBLY
  6. Disconnect the brake lamp wire from the switch on the pedal assembly (2).
  7. Roll the carpet back, loosen the front cable grommet from the floorpan and the cable retainer.
  8. Disengage the release rod (1) from the arm on the pedal assembly (2).
  9. Remove the bolts/nuts from the pedal assembly (2) and remove the assembly.
