MODULE, Park Assist: Installation: Installation
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

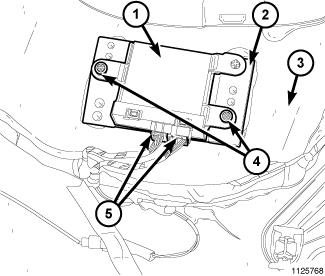

- Position the park assist module (1) at the mounting bracket (2) bonded to the back of the headliner (3).
- Secure the module to the bracket with two fasteners (4).
- Reconnect the two body wire harness connectors (5) to the module connector receptacles.
- Reinstall the vehicle headliner. Refer to HEADLINER , Installation .
- Reconnect the battery negative cable.
