MODULE, Drivetrain Control: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

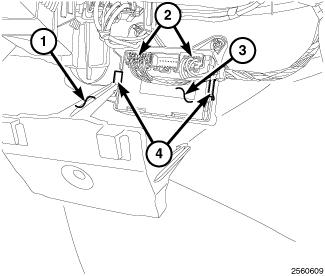

Fig 1: Removing/Installing Drivetrain Control Module
GC0094880Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. To gain access to the Drive Train Control Module (DTCM), position the carpet that is located at the passenger side, away from the dash panel.
  3. Remove cover on the DTCM by pulling up on the upper rear tab (1), and rotating down and away from the module (3).
  4. Disconnect the module electrical connectors (2).
  5. Using trim stick - (special tool #C-4755, Trim Stick) or equivalent, gently pry back on the retaining tabs on the mounting plate (4) and remove module (3).
