Shaft, Axle Intermediate: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove half shaft from disconnect side of the axle Refer to SHAFT, AXLE, REMOVAL .
    Fig 1: Actuator & Bolts
    GC0152033Courtesy of CHRYSLER GROUP, LLC
  2. Remove actuator wiring connector.
  3. Remove actuator bolts (1).
    Fig 2: Actuator & Disconnect Pocket
    GC0152034Courtesy of CHRYSLER GROUP, LLC
  4. Remove actuator (1) from disconnect pocket (2).

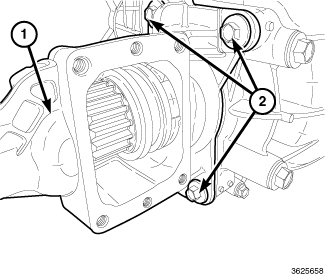

    Fig 3: Axle Tube Assembly & Bolts
    GC0152036Courtesy of CHRYSLER GROUP, LLC
  5. Remove axle tube assembly bolts (2).
  6. Remove axle tube assembly (1). Keep disconnect collar with output shaft and tube assembly.

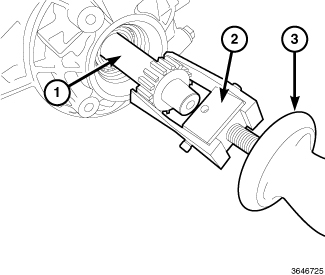

    Fig 4: Removing Intermediate Shaft
    GC0152052Courtesy of CHRYSLER GROUP, LLC
  7. Remove intermediate shaft (1) using (special tool #C-4333A-1, Puller, Pulley) (2) and (special tool #C-637, Slide Hammer, Universal).
