Output Shaft Assembly, Front Axle: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

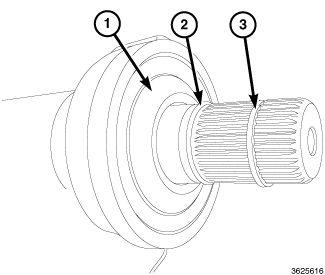

Fig 1: Oil Slinger, Snap Ring & O-Ring
GC0152035Courtesy of CHRYSLER GROUP, LLC
  1. Remove half shaft from disconnect side of the axle. Refer to SHAFT, AXLE, REMOVAL .
  2. Remove snap ring (3) and O-ring (2) from output shaft.
  3. Remove oil slinger (1) and discard.
    Fig 2: Actuator & Bolts
    GC0152033Courtesy of CHRYSLER GROUP, LLC
  4. Remove actuator wiring connector.
  5. Remove actuator bolts (1).
    Fig 3: Actuator & Disconnect Pocket
    GC0152034Courtesy of CHRYSLER GROUP, LLC
  6. Remove actuator (1) from disconnect pocket (2).
    Fig 4: Axle Tube Assembly & Bolts
    GC0152036Courtesy of CHRYSLER GROUP, LLC
  7. Remove axle tube assembly bolts (2).
  8. Remove axle tube assembly (1).

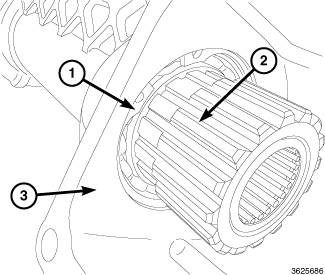

    Fig 5: Output Shaft, Axle Tube & Snap Ring
    GC0152037Courtesy of CHRYSLER GROUP, LLC
  9. Remove output shaft snap ring (1) from axle tube (3).
  10. Remove output shaft (2) from axle tube (3).
