Pressure Hose
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

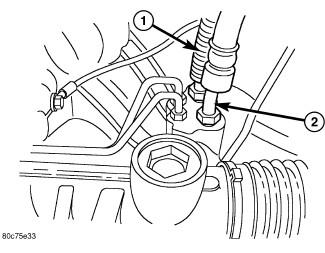

Courtesy of CHRYSLER LLC
| 1 - RETURN HOSE |
| 2 - PRESSURE HOSE |
- Drain and siphon the power steering system.
- Raise and support the vehicle.
- Disconnect the pressure hose at the pump.
- Disconnect the pressure hose (2) at the gear
.
- Remove the pressure hose from the vehicle.
