DAMPER, Steering, Link and Coil: Installation: Damper

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

All views are typical.

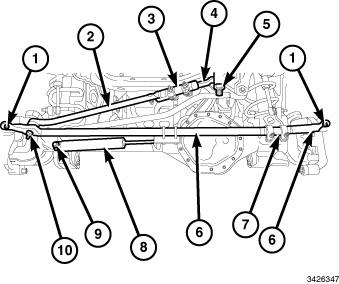

Fig 1: Steering Damper Mounting Nuts And Bolts
GC0143914Courtesy of CHRYSLER LLC
  1. Position the steering damper (8) on the axle bracket. Install the bolt (9) and nut and tighten to specifications. Refer to Linkage, Link and Coil , Specifications .
    Fig 2: Identifying Steering Damper & Linkage Bracket Bolt
    GC0137167Courtesy of CHRYSLER LLC
  2. Position the steering damper (1) on the linkage bracket bolt (7), install the nut (6) and tighten to specifications. Refer to Linkage, Link and Coil , Specifications .
  3. Remove the support and lower the vehicle.
