Outer Tie Rod End

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

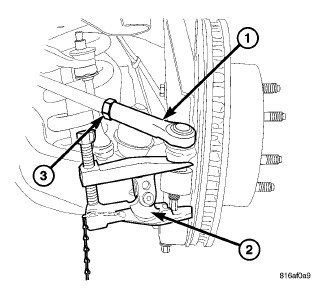

Fig 1: Identifying Outer Tie Rod End, Jam Nut, And Separator
GC0083619Courtesy of CHRYSLER LLC
NOTE:

Do not twist the boot anytime during removal or installation.

  1. Loosen the jam nut (3).
  2. Remove the outer tie rod end nut from the ball stud.
  3. Separate the tie rod ball stud (1) from the knuckle with Ball Joint Remover (special tool #9360, Remover, Ball Joint) (2) .
  4. Unthread the outer tie rod end (1) from the inner tie rod.
