Inner Tie Rod End

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Outer Tie Rod End, Jam Nut, And Separator
GC0083619Courtesy of CHRYSLER LLC
  1. Remove the outer tie rod end (1) Count the number of turns when removing, this will aid in setting the toe after installation.  . Refer to END, Tie Rod , Removal END, Tie Rod, Link and Coil , Removal .
  2. Remove the jam nut (3).

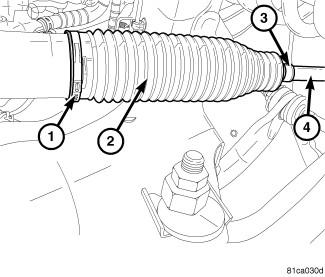

    Fig 2: Boot & Clamps
    GC0083620Courtesy of CHRYSLER LLC
  3. Remove the clamps (1, 3) for the inner tie rod boot (2).
  4. Remove the boot (2).

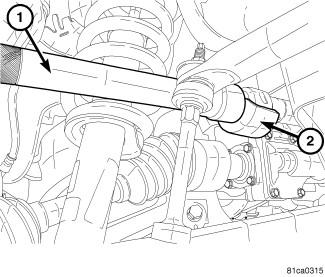

    Fig 3: Identifying Socket & Tube
    GC0083621Courtesy of CHRYSLER LLC
  5. Install Inner Tie Rod Wrench (special tool #10087-3, Wrench, Inner Tie Rod) (2) and Inner Tie Rod Adapter Wrench (special tool #10087-2A, Adapter Wrench, Inner Tie Rod) (1) and remove the inner tie rod end.
