Outer Tie Rod End

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

All views are typical.

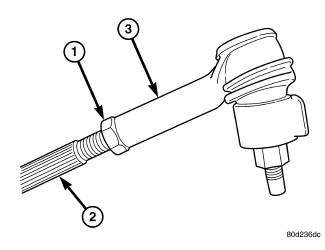

Fig 1: Tie Rod End

Courtesy of CHRYSLER LLC

NOTE:

Do not twist the boot at anytime during removal or installation.

Thread the outer tie rod end (3) onto the inner tie rod (2), to it's original position.

Fig 2: Locating Grease & Tie Rod End Boot
Courtesy of CHRYSLER LLC

NOTE:
If a new tie rod end is to be installed, make sure the boot (2) is properly lubricated.
Clean all old grease and debris from the boot (2) with a clean cloth.
Apply outer tie rod grease P/N 68088623AA (1) to the tie rod end boot (2).

Fig 3: Tie Rod End
Courtesy of CHRYSLER LLC
Install the outer tie rod end (3) into the steering knuckle.
Tighten the ball stud nut on the ball stud to 61 N.m (45 ft. lbs.) then an additional 90°.
Set wheel toe pattern. Refer to Wheel Alignment , Standard Procedure .
Tighten jam nut (1) to 127 N.m (94 ft. lbs.).
