Motor, Vented Seat: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Seat back shown in illustration. Seat bottom similar.

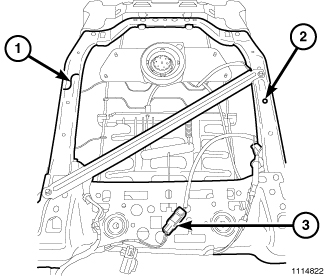

Fig 1: Seat Frame, Pin-Type Retainer & Connector

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the seat cushion or seat back cover.
Disconnect the vented seat motor electrical connector (3) and remove the electrical harness pin-type retainer (2) from the seat frame (1).

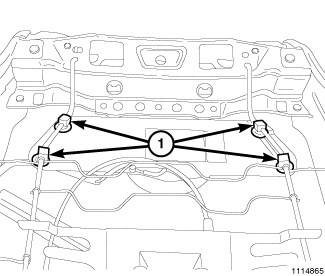

Fig 2: Vented Seat Motor Retaining Clips
Courtesy of CHRYSLER GROUP, LLC
Remove the vented motor assembly by releasing the 4 retaining clips (1) from the seat assembly.
