Diagnostic Test

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. VERIFY THE DTC IS ACTIVE
    1. Turn the ignition on.
    2. With the scan tool, record and erase DTCs.
    3. With the scan tool, read the DTCs in the ASCM.

      Is the DTC active at this time?

      Yes

      • Go To  2

      No

      • Go To  4
  2. (Y45) COMPRESSOR TEMPERATURE SIGNAL SHORTED TO GROUND

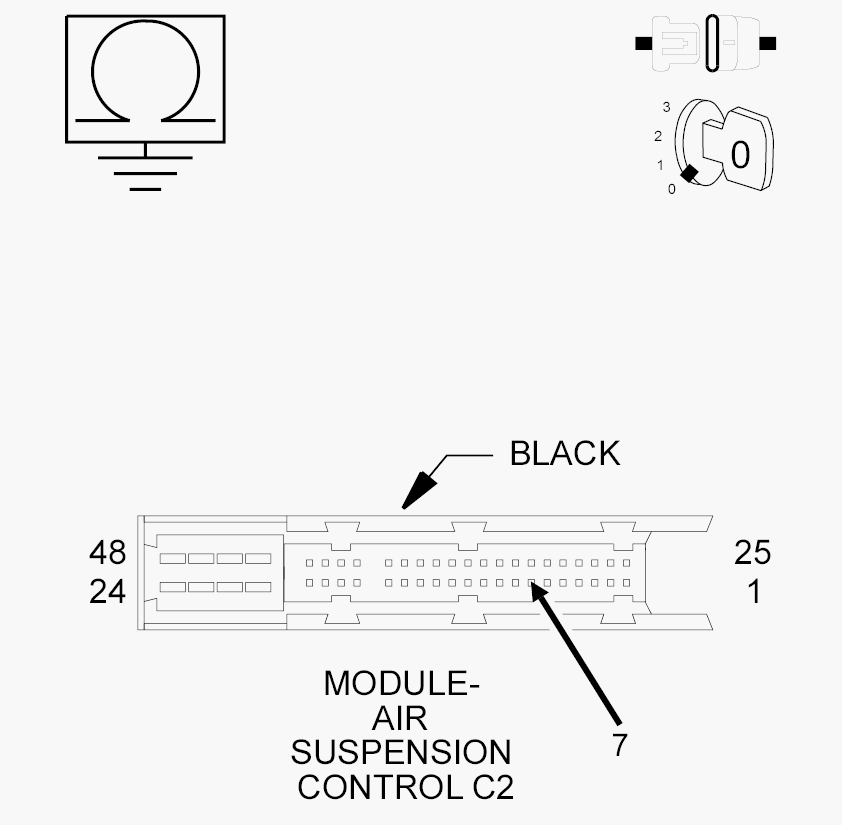

    Fig 1: Checking Compressor Temperature Signal For A Short To Ground
    GC0151965Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the ASCM C2 harness connector.
    3. Disconnect the Air Suspension Compressor Assembly harness connector.
    4. Measure the resistance between ground and the (Y45) Compressor Temperature Signal circuit.

      Is the resistance below 5.0 Ohms?

      Yes

      • Repair the (Y45) Compressor Temperature Signal circuit for a short to ground.
      • Perform the ASCM VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      • Go To  3
  3. AIR SUSPENSION COMPRESSOR ASSEMBLY
    1. Replace the Air Suspension Compressor Assembly in accordance with the Service Information. Refer to COMPRESSOR ASSEMBLY, AIR SUSPENSION, REMOVAL . Perform the ASCM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
    2. Turn the ignition on.
    3. With the scan tool, record and erase DTCs.
    4. With the scan tool, read the DTCs in the ASCM.

      Does the DTC remain active?

      Yes

      No

      • Test complete, the condition or conditions that originally set this DTC are not present at this time.
  4. INTERMITTENT WIRING AND CONNECTORS
    1. Using the wiring diagram/schematic as a guide, inspect the wiring harness and connectors.
    2. Wiggle test the wiring harness and connectors while monitoring the scan tool data relative to this circuit.
    3. Look for the data to change or for the DTC to reset during the wiggle test.
    4. While monitoring the scan tool data relative to this circuit, move the selector switch to each position several times.
    5. Look for the data to change other than as expected or for the DTC to reset.

      Were any problems found?

      Yes

      No

      • Test complete, the condition or conditions that originally set this DTC are not present at this time.
