Front Door Speaker

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

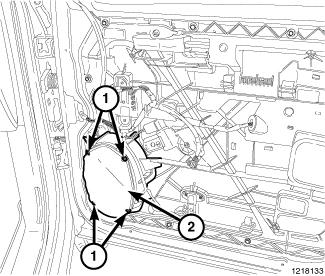

Fig 1: Front Door Speaker
GC0087481Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the front door trim panel. Refer to PANEL, Door Trim , Removal .
  3. Remove speaker mounting fasteners.
  4. Disconnect the electrical connector and remove the speaker.
