Instrument Panel Center Speaker

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

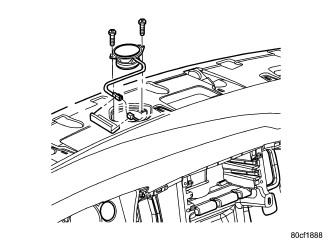

Fig 1: Instrument Panel Center Speaker
GC0083437Courtesy of CHRYSLER LLC
  1. Connect the electrical harness connector and install the speaker.
  2. Install and tighten the mounting fasteners.
  3. Install the instrument panel top cover. Refer to COVER, Instrument Panel , Installation .
  4. Connect the battery negative cable.
