Section 27 (Audio And Video (Service Information)): Amplifier: Installation: Installation
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Install the mounting bracket on the amplifier.
- Install the amplifier into the vehicle.

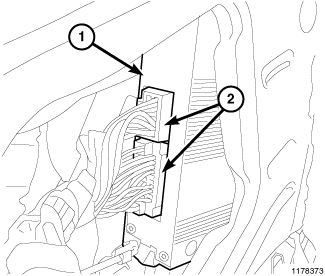

- Connect the two amplifier (1) electrical connectors (2).

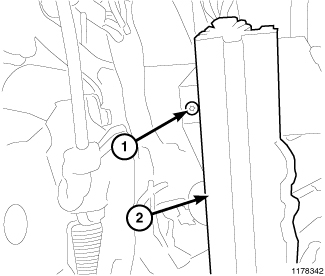

- Install the amplifier (2) mounting bracket screw (1).

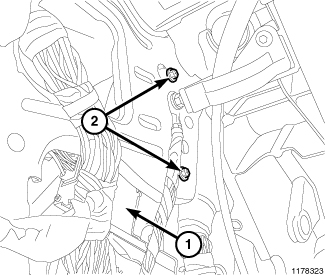

- Tighten the two screws amplifier mounting screws (2).
- Install the steering column cover. Refer to COVER, Steering Column Opening , Installation .
- Connect the negative battery cable.
