Switch, Oil Pressure: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

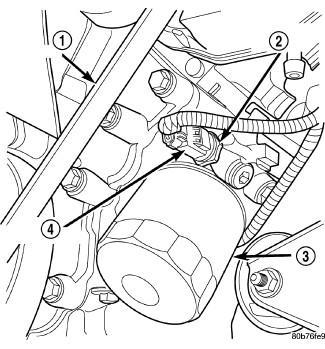

Fig 1: Identifying Engine Oil Pressure Sensor
GC0082872Courtesy of CHRYSLER GROUP, LLC
  1. Install oil pressure sender (2).
  2. Connect oil pressure sender wire (4).
  3. Install front splash shield.
  4. Lower vehicle.
  5. Connect the negative battery cable.
