Testing Valve Springs

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Whenever the valves are removed from the cylinder head it is recommended that the valve springs be inspected and tested for reuse.

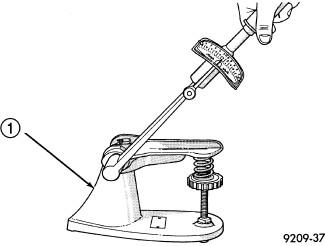

Fig 1: Testing Valve Springs

Courtesy of CHRYSLER GROUP, LLC

Inspect the valve springs for physical signs of wear or damage. Using a suitable valve spring tester (1), test the following;

Specified Spring Height
Specified Spring Force (Valve Open)
Specified Spring Force (Valve Closed)

Replace any springs that do not meet specifications Refer to SPECIFICATIONS .
