Upper - 4WD

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Threebond Engine RTV Sealant may result in engine fluid leakage.

CAUTION:

Clean the upper and lower oil pans, timing chain cover, rear seal retainer and engine block mating surfaces thoroughly with isopropyl alcohol in preparation for sealant application. All surfaces that seal with RTV must be oil and contamination free to ensure proper adhesion of the RTV to the mating surface to prevent leaks.

CAUTION:

Following the application of Mopar® Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 20 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

Fig 1: Mopar® Threebond Engine RTV Sealant Locations
GC0145012Courtesy of CHRYSLER GROUP, LLC
  1. Apply a 2 to 3 mm wide bead of Mopar® Threebond Engine RTV Sealant to the upper oil pan as shown in the following locations:
    • Oil pan to engine block flange (1).
    • Two timing cover to engine block T-joints (2).
    • Two rear seal retainer to engine block T-joints (3)
    Fig 2: Oil Pan Mounting Bolts
    GC0145010Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Make sure that the rear face of the oil pan is flush to the transmission bell housing before tightening any of the oil pan mounting bolts. A gap between the oil pan and the transmission could crack the oil pan or transmission casting.

  2. Install the oil pan to the engine block and flush to the transmission bell housing. Secure the oil pan to the engine block with nineteen M8 oil pan mounting bolts (1) finger tight.
    Fig 3: Transmission-To-Engine Oil Pan Bolts
    GC0144171Courtesy of CHRYSLER GROUP, LLC
  3. Install four transmission to the engine oil pan bolts (1) and tighten to 55 N.m (41 ft. lbs.).
    Fig 4: Oil Pan Mounting Bolts
    GC0145010Courtesy of CHRYSLER GROUP, LLC
  4. Tighten the nineteen previously installed M8 oil pan mounting bolts (1) to 25 N.m (18 ft. lbs.).
    Fig 5: Rear Oil Seal Retainer Flange Bolts
    GC0145009Courtesy of CHRYSLER GROUP, LLC
  5. Install two M6 bolts (1) to the rear oil seal retainer flange and tighten to 10 N.m (89 in. lbs.).
    Fig 6: Rubber Plugs
    GC0145023Courtesy of CHRYSLER GROUP, LLC
  6. Install two rubber plugs (1) covering the rear oil seal retainer flange bolts.
    Fig 7: Transmission Cooler Line Retainer
    GC0145014Courtesy of CHRYSLER GROUP, LLC
  7. Clip the transmission cooler line retainer (1) to the oil pan flange.
    Fig 8: Lower Oil Pan & Fasteners
    GC0145008Courtesy of CHRYSLER GROUP, LLC
  8. Install the lower oil pan. Refer to PAN, OIL, INSTALLATION  .
  9. Lower the vehicle.
  10. Lower the engine onto the engine mounts. Remove the engine support fixture.

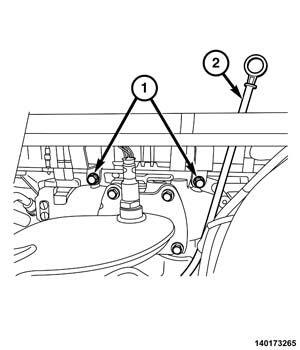

    Fig 9: Coolant Heater Tubes-To-Cylinder Head Bolts And Oil Indicator
    GC0154427Courtesy of CHRYSLER GROUP, LLC
  11. Install the oil indicator tube. Tighten the bolt (1) to 12 N.m (106 in. lbs.).
  12. Raise the vehicle.
    NOTE:

    Right side engine mount shown in illustration, left side similar.

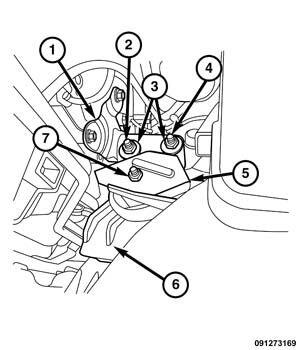

    Fig 10: Remove/Install Engine Mount, Heat Shield And Engine Bracket Bolts
    GC0154564Courtesy of CHRYSLER GROUP, LLC
  13. Install the inner engine mount support bracket through bolts (2). Tighten the nuts (3) to 61 N.m (45 ft. lbs.).
  14. Tighten the outer engine mount support bracket bolts (4) to 61 N.m (45 ft. lbs.).

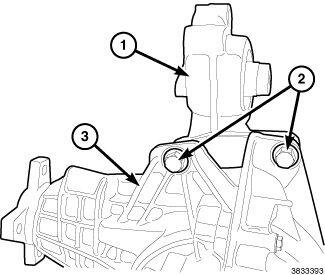

    Fig 11: Mounting Bolts, Isolator & Axle
    GC0152086Courtesy of CHRYSLER GROUP, LLC
  15. Install the front differential assembly (3) to the lower engine mounts (1). Tighten the bolts to 110 N.m (81 ft. lbs.)

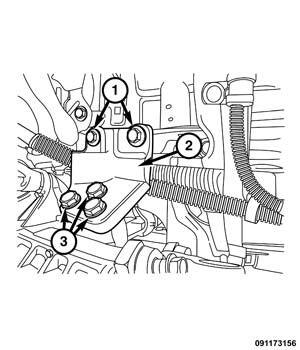

    Fig 12: Remove/Install Front Pinion Housing Bracket
    GC0154389Courtesy of CHRYSLER GROUP, LLC
  16. Install the front differential housing bracket (2). Tighten the upper bolts (1) to 68 N.m (48 ft. lbs.).

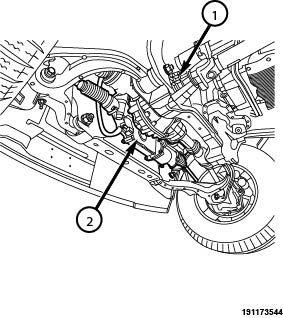

    Fig 13: Remove/Install Steering Gear
    GC0154507Courtesy of CHRYSLER GROUP, LLC
  17. Install the steering gear (2). Refer to GEAR, INDEPENDENT FRONT SUSPENSION, INSTALLATION .
  18. Install the front skid plate, if equipped. Refer to PLATE, SKID, FRONT, INSTALLATION .
  19. Lower the vehicle.
    Fig 14: Lower Coupling At Gear
    GC0131140Courtesy of CHRYSLER GROUP, LLC
  20. Install the EPS gear coupler (1). Tighten the pinch bolt to 49 N.m (36 ft. lbs.).
  21. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to LUBRICATION/OIL - STANDARD PROCEDURE  .
  22. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
  23. Run the engine until it reaches normal operating temperature.
