Sensor, Coolant Temperature: Installation: 3.6L

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

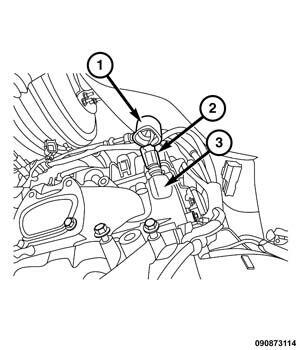

Fig 1: Identifying Engine Coolant Temperature Sensor (3.6L)

Courtesy of CHRYSLER GROUP, LLC

Apply MOPAR™ thread sealant with PFTE to sensor threads.
Install sensor (2) to cylinder head (3).
Tighten sensor to 11 N.m (97 in. lbs.).
Connect electrical connector to temperature sensor.
Install the left front wheel.
Lower the vehicle.
Replace any lost engine coolant. Refer to STANDARD PROCEDURE .
