Heater, Engine Block: Description: Description

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: 3.6L Engine Block Heater & Cylinder Block

Courtesy of CHRYSLER GROUP, LLC

An optional engine block heater is available with all models. The heater is equipped with a power cord. The heater warms the engine providing easier engine starting and faster warm-up in low temperatures. The 3.6L block heater is located towards the front left side of the engine block.

Fig 2: Identifying Engine Block Heater

Courtesy of CHRYSLER GROUP, LLC

WARNING:

Do not operate engine unless block heater cord has been disconnected from power source and secured in place. The power cord must be secured in its retaining clips and routed away from exhaust manifolds and moving parts.

The heater is mounted in a core hole of the engine cylinder block in place of a freeze plug with the heating element immersed in engine coolant. The 4.7L engine has the block heater located to the rear on the right side of the engine.

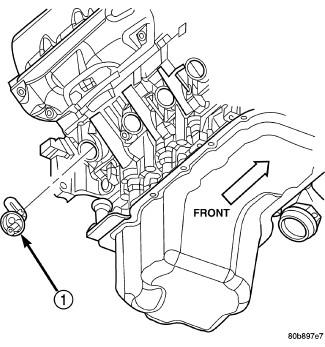

Fig 3: Engine Block Heater

Courtesy of CHRYSLER GROUP, LLC

The 5.7L engine has the block heater (1) located on the left side of the engine below the exhaust manifold in the rear of the engine and is not immersed in engine coolant but makes direct contact with the block.
