Sensor, Air Temperature, Intake: Installation: 3.6L

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: IAT Sensor Tab/O-Ring
GC0082921Courtesy of CHRYSLER GROUP, LLC
  1. The sensor mounted O-ring seal (2) can be reused if not damaged.
  2. Clean the IAT sensor mounting hole in the air inlet hose.
  3. Install the IAT sensor into the air inlet hose and rotate clockwise until the release tab (3) engages.

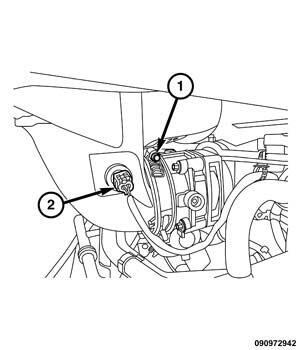

    Fig 2: IAT Sensor Electrical Connector
    GC0154633Courtesy of CHRYSLER GROUP, LLC
  4. Install the electrical connector (1) to the IAT sensor.
  5. Install the engine cover.
  6. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
