6.7L Diesel

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate both negative battery cables at both batteries.
  2. Raise and support vehicle.

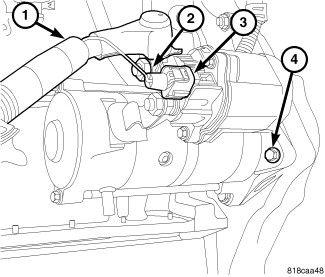

    Fig 1: Starter 6.7l Diesel
    GC0108135Courtesy of CHRYSLER LLC
    1 - BATTERY CABLE
    2 - BATT. CABLE MOUNTING NUT
    3 - SOLENOID CONNECTOR
    4 - MOUNTING BOLTS (3)
  3. Disconnect solenoid electrical connector (3).
  4. Remove battery cable mounting nut (2).
  5. Remove battery cable (1) from stud.
  6. Remove three starter mounting bolts (4).
  7. Remove starter motor from engine.
