Sensor, Wheel Speed, Rear: Removal: 1500

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

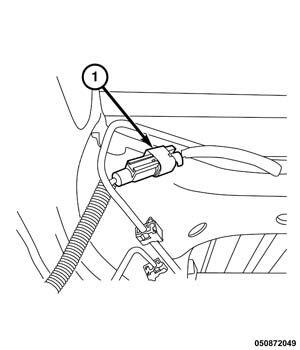

Fig 1: Wheel Speed Sensor Electrical Connector

Courtesy of CHRYSLER GROUP, LLC

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Disconnect the wheel speed sensor electrical connector (1).

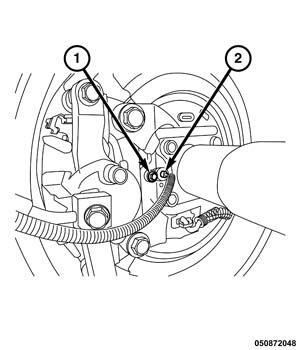

Fig 2: Identifying Front Wheel Speed Sensor & Mounting Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the mounting bolt (1) from the sensor (2).
Remove the sensor (2).
